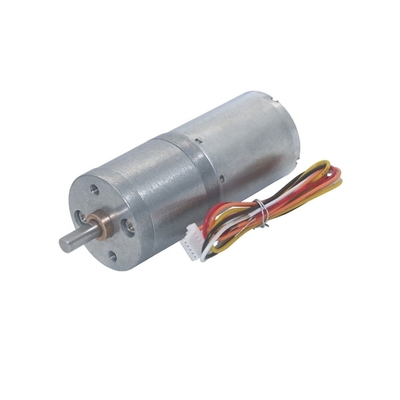

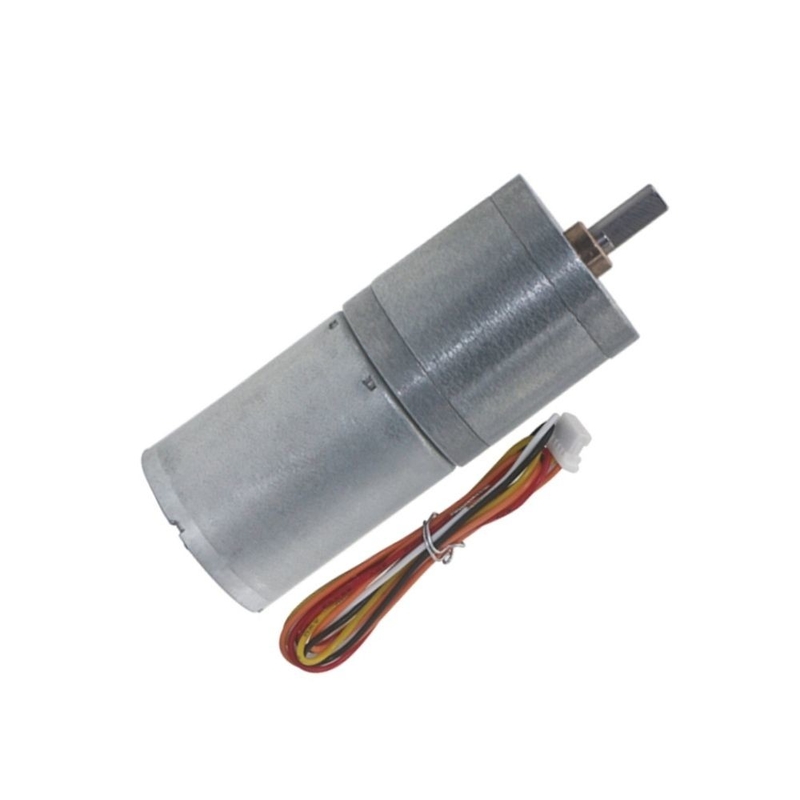

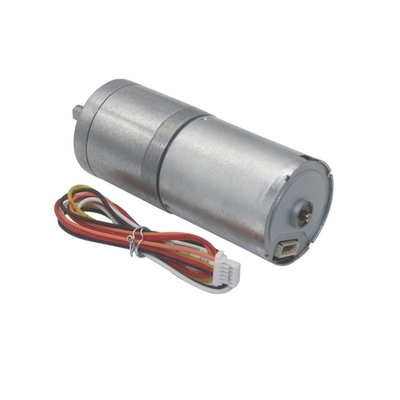

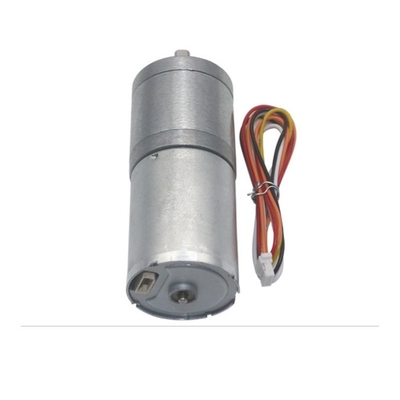

25mm Brushless DC Gear Motor High Torque

Specification:

• Voltage:DC12V

No-load Speed: 14rpm,18.5rpm,30rpm,40rpm,54rpm,65rpm,88rpm,150rpm,200rpm,320rpm,700rpm,1550rpm

• Voltage:DC24V

No-load Speed:14rpm,18.5rpm,30rpm,40rpm,54rpm,65rpm,88rpm,150rpm,200rpm,320rpm,700rpm,1550rpm

• Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
• Motor Diameter: about 25mm
• Motor Body Length: 30.8mm
• Output Shaft Diameter: 4mm(D-Type)
• Output Shaft Length: 12mm
• Gearbox Length: see the tab

Wire Connection Method:

• Red line:Power+
• Black line:Power-
• Yellow line:FG output,18singals/R
• Orange line:CCW/CW control ,orange line Vacant motor is ccw,when orange line connect power-,motor is cw.
• White line:speed adjust

• Datasheet:
•

• Rated Voltage DC12V JGY-2430
  Reduction raiio	40	65	150	200	260	340	600	1000
  No load Current (MA)	<130	<130	<130	<130	<130	<130	<130	<130
  No load RPM	150	90	40	30	23	18	10	6
  Load torque (Kg,cm)	1.5	3	7.0	9.0	12.0	15.0	21.0	25.0
  Load RPM	100	70	30	22	17	13	7	4
  Load Currern (A)	<0.8	<0.8	<0.8	<0.8	<0.8	<0.8	<0.8	<0.8
  Max Torque (Kg.cm)	2.5	4.2	10.0	13.0	17.0	22.0	Max 25KG
  Stall Current (A)	1.8	1.8	1.8	1.8	1.8	1.8	Fobid locked
  Rated Voltage DC24V JGY-2430
  Reduction ratio	40	65	150	200	260	340	600	1000
  No load Current (MA)	<80	<80	<80	<80	<80	<80	<80	<80
  No load RPM	150	90	40	30	23	18	10	6
  Load ©rque (Kg.cm)	20	3.5	8.0	10.0	14.0	17.0	20.0	25.0
  Load RPM	100	70	30	22	17	13	7	4
  Load Current (A)	<1.3	<0.5	<0.5	<0.5	<0.5	<0.5	<0.5	<0.5
  Max Torque (Kg.cm)	3.0	4.9	11.5	15.0	20.0	25.0	Max 25KG
  Stall Current (A)	1.3	1.3	1.3	1.3	1.3	1.3	Fobid locked



FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese​
