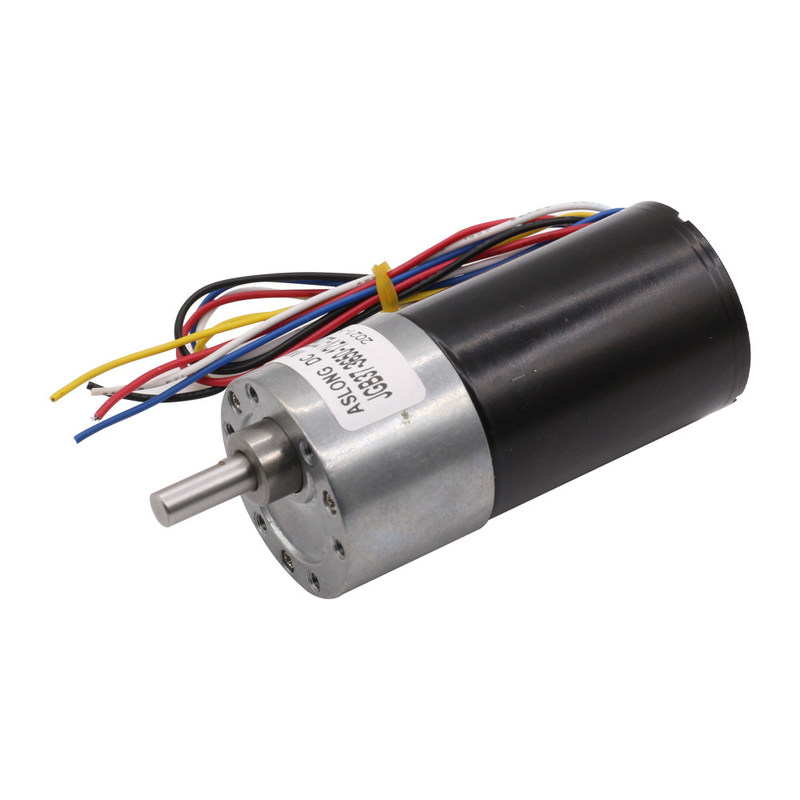

37mm Brushless DC Gear Motor 12V 24V

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

37mm Brushless DC Gear Motor 12V 24V

37mm Brushless DC Gear Motor 12V 24V
37mm Brushless DC Gear Motor 12V 24V
37mm Brushless DC Gear Motor 12V 24V 37mm Brushless DC Gear Motor 12V 24V 37mm Brushless DC Gear Motor 12V 24V 37mm Brushless DC Gear Motor 12V 24V 37mm Brushless DC Gear Motor 12V 24V

Large Image :  37mm Brushless DC Gear Motor 12V 24V

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: ROSH,CE
Model Number: JGB37-3650
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD25/pcs
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

37mm Brushless DC Gear Motor 12V 24V

Description
Usage: Home Appliance,Fan,Car Commutation: Brushless
Type: BRUSHLESS DC MOTOR Certification: CE,ROHS
Efficiency: IE 2 Rated Voltage: 12~24v
High Light:

37mm Brushless DC Gear Motor

,

37mm Brushless DC Gear Motor 12V

,

37mm brushless gear motor

37mm Brushless DC Gear Motor 12V 24V



37mm Diameter Gear Box Powerful Micro Long Life High torque DC12V 24V Brushless Gear Motor Silent BLDC Geared Motor



Low Noise Long Life High torque DC12V 24V Brushless Gear Motor JGB37-3650

Note:
*Brushless Gearmotors are best suited for applications that require "continuous (constant) operation.
Specification:
  • Voltage: DC12V, DC24V
  • 12volt No-Load Speed: 5rpm, 8rpm, 15rpm, 23rpm, 36rpm, 44rpm, 71rpm, 133rpm,212RPM,400RPM,634RPM
  • 24volt No-Load Speed: 10rpm, 16rpm, 29rpm, 47rpm, 61rpm, 88rpm, 142rpm, 266rpm,425RPM,800rpm,1270rpm
  • Error: ±5%
  • Maxtorque:35kg.cm
  • Output Shaft Diameter: 6mm D-type
  • Output Shaft Length: 14mm
  • Gearbox Diameter :37mm
  • Gearbox Size Detal, please see the table



Datasheet:





Model number: JGB37-3650
Rated DC 12V Brushless Gear Motor
Reduction ratio 6.3 10 19 30 56 90 131 168 270 506 810
No Load Current(ma) <150 <150 <150 <150 <150 <150 <150 <150 <150 <150 <150
No Load speed (rpm) 634 400 212 133 71 44 36 23 15 8 5
Rated torque(kg.cm) 1.2 1.9 3.5 5.7 10.5 17 24 31 35 35 35
Rated speed (rpm) 487 300 160 100 54 33 27 15 11 6 4
Rated Current(ma) <600 <600 <600 <600 <600 <600 <600 <600 <600 <600 <600
Stall Torque (kg.cm) 2.4 3.8 7 11 21 34 Max 35kg Forbidden Stall
Gearbox Length(mm) 19 22 24 26.5 29
Rated DC 12V Brushless Gear Motor
Reduction ratio 6.3 10 19 30 56 90 131 168 270 506 810
No Load Current(ma) <180 <180 <180 <180 <180 <180 <180 <180 <180 <180 <180
No Load speed (rpm) 1270 800 425 266 142 88 61 47 29 16 10
Rated torque(kg.cm) 2.4 3.8 7 11 21 34 35 35 35 35 35
Rated speed (rpm) 970 600 326 200 100 67 46 36 22 12 8
Rated Current(ma) <1000 <1000 <1000 <1000 <1000 <1000 <1000 <1000 <1000 <1000 <1000
Stall Torque (kg.cm) 4.7 7.6 14 22.8 35 Max 35kg Forbidden Stall
Gearbox Length 19 22 24 26.5 29
  • Introduction of the motor


    1. Name of the motor : JGB37-3650 12V 24V DC gear motorbrushless

    2. Brushless geared motor is composed of a brushless high speed motor and a gearbox to form a complete DC brushless geared motor. The life of a brushless motor is about 10 times that of a brushed motor, the maximum life can reach 10,000 hours, can greatly reduce the maintenance cost of the project. If the load of the project does not exceed the rated torque of the motor, then the motor is ideal for use in smart devices with long life requirements

    3. Prominent feature : Built-in sense drive; Full metal gears; long life; stable and reliable performance; low noise; support reverse; high torque; FG signal output pulse signal; Pulse width PWM speed regulation; Overcurrent protection 2A; Overvoltage protection 30V; Over temperature protection 80 degrees Celsius; No sparks are generated when the motor is running, which avoids interference with the equipment; the brushless motor is controlled by the frequency conversion technology, which is more energy-efficient than the carbon brush motor.

    4. Rated voltage have DC 12V and DC 24V

    5. DC 12V ; You can choose the no load speed have :
    5rpm/8rpm/15rpm/23rpm/36rpm/44rpm/71rpm/133rpm/212rpm/400rpm/634rpm

    Rated torque between 1.2 To 35 KG.CM; Stall torque: between 2.4-35KG, it is recommended that your project load not exceed the rated torque; select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

    6. DC 24V ; You can choose the no load speed have :
    10rpm/16rpm/29rpm/47rpm/61rpm/88rpm/142rpm/266rpm/425rpm/800rpm/1270rpm

    Rated torque between 2.4 To 35 KG.CM; stall torque: between 4.7-35KG, it is recommended that your project load not exceed the rated torque; select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

    7. Direction of rotation of the motor: CW Or CCW ; Support Reversed

    8. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

    9. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.

    10. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.

    11. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
